The Hidden Danger of Short-Duration Voltage Collapse in Military Vehicle Platforms
System engineers frequently encounter a frustrating phenomenon: equipment performs unexpected resets, mission computers reboot, or communication systems lose synchronization – even though measured input voltage appears to remain within the specified operating range.
In the lab, everything works.
In the vehicle, the system fails.
If the voltage never leaves the acceptable range, where is the problem?
The answer lies in a phenomenon that is rarely measured:
voltage collapse duration.
The Voltage Stays in Range – But Not Long Enough
Most designs verify:
-
input voltage range
-
transient spikes
-
ripple and noise
Yet many systems fail due to:
-
short-duration voltage dips lasting milliseconds
-
hold-up gaps between power source and load
-
slow dynamic response of the converter
-
interaction between dynamic loads
The voltage did not leave the range.
It dropped long enough to disrupt the system.

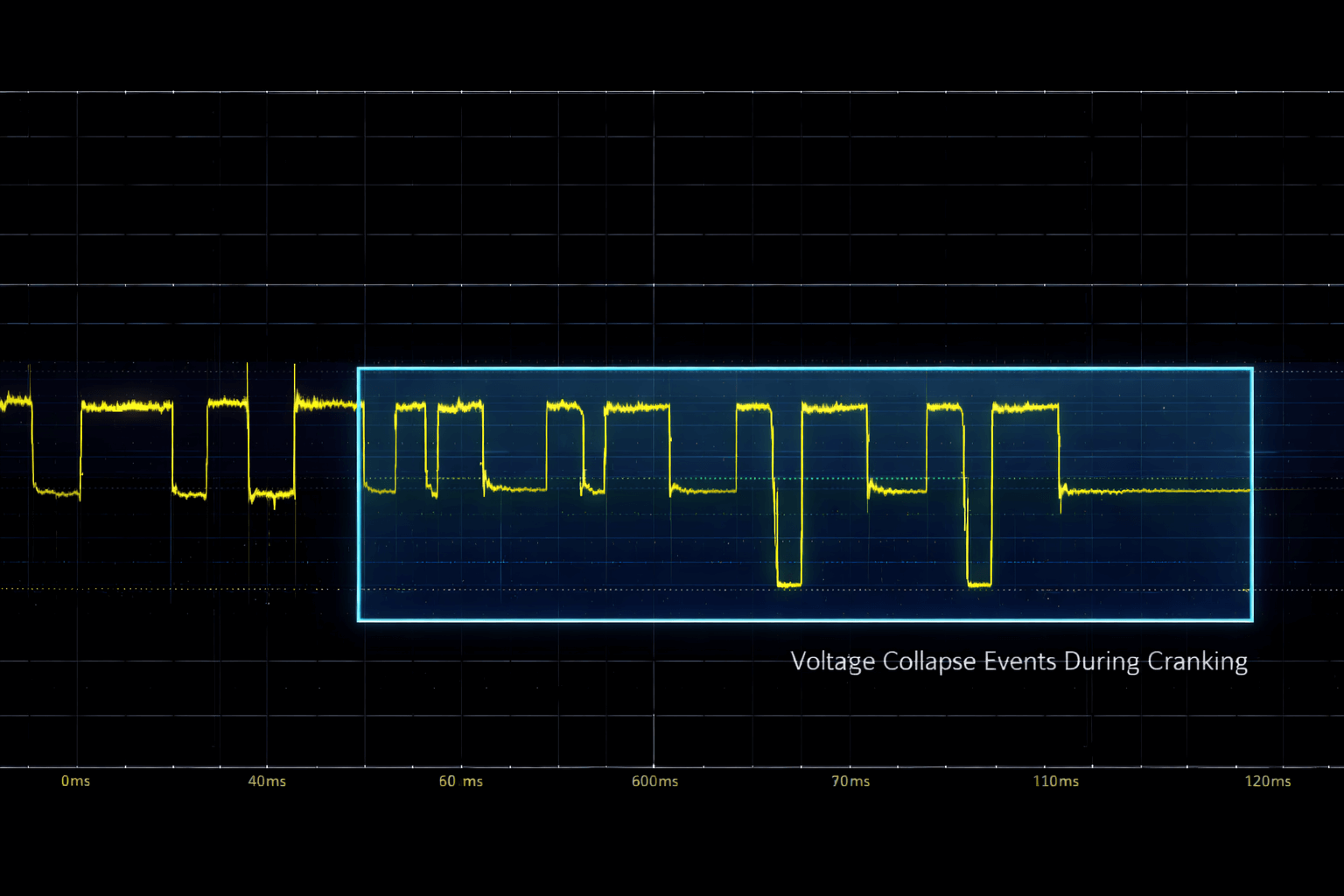

What Happens During Engine Start
During engine cranking, several rapid events occur:
-
bus voltage momentarily collapses
-
starter current induces ground shifts
-
alternator recovery creates voltage overshoot
-
additional loads begin switching on
Voltage may remain within acceptable limits – but stay low for several milliseconds.
That may be acceptable for the converter.
It is not acceptable for the mission computer.
Why the Converter Survives – But the System Does Not
DC-DC converters are designed to operate within defined input ranges.
However, internal electronics – processors, memory, timing circuits, and communication modules – are far more sensitive to brief voltage drops.
When the following occurs:
-
short undershoot events
-
loss of internal hold-up energy
-
voltage sag on internal rails
the system may:
-
reset
-
lose synchronization
-
enter fault states
-
corrupt data
Common Field Symptoms
Power integrity issues rarely appear as “power problems.”
Instead, teams report:
-
resets during engine start
-
equipment that works in the lab but fails in the vehicle
-
brief communication dropouts
-
unexplained computer reboots
-
intermittent faults that cannot be reproduced
In many cases, the root cause is a ride-through gap.
The Design Blind Spot
Datasheets emphasize:
-
input voltage range
-
transient immunity
-
efficiency
But often provide limited emphasis on:
-
hold-up time
-
ride-through capability
-
dynamic response under load
-
system-level interaction
This is where systems fail.
Typical Real-World Scenario
Military vehicle system:
-
nominal bus voltage: 28V
-
cranking dip: down to 16V
-
duration: ~8 ms
The converter remains operational.
The mission computer loses internal voltage → reset.
Designing for True Ride-Through Survivability
System survivability is not achieved through a single component.
It requires a power architecture approach.
Effective design includes:
Input power stabilization and protection
Preventing transient energy and disturbances from reaching sensitive electronics.
Short-duration energy buffering
Providing hold-up capability to sustain operation during brief voltage collapses.
Rugged DC-DC conversion with fast dynamic response
Maintaining stable output despite rapid input fluctuations and load changes.
Separation of critical and non-critical loads
Preventing high-current events from disrupting sensitive subsystems.
System-level power architecture
Layered EMI filtering, grounding strategy, disturbance isolation, and structured rail distribution.
Power Survivability Solution Portfolio
In mission-critical and rugged platforms, power survivability is achieved through layered solutions, including:
-
input protection modules that stabilize and filter the vehicle power bus
-
rugged DC-DC converters designed for military and vehicular environments
-
sealed power units for operation in moisture, shock, and dust conditions
-
multi-output power systems enabling rail separation and critical load prioritization
-
energy buffering and ride-through continuity solutions
-
engineering support for adapting power architecture to platform requirements
The correct integration of these layers enables stable system operation even in harsh field conditions.
Why Lab Testing Doesn’t Reveal the Problem
Bench power supplies do not replicate:
-
dynamic load interactions
-
harness inductance and wiring effects
-
real ground paths and shifts
-
electromagnetic coupling between subsystems
Ride-through failures often emerge only during system integration or field deployment.
Checklist for System Engineers
Before finalizing your design:
□ How many milliseconds must the system survive without bus voltage?
□ What is the peak current of critical loads during the event?
□ Is adequate hold-up energy available?
□ Are critical loads isolated from cranking loads?
□ Has testing been performed under dynamic load conditions?
□ Has system behavior during engine start been validated?
If any answer is uncertain, reset risk remains.
Local Integration Context
In defense and rugged platforms, integration constraints, legacy system interfaces, and harsh environmental conditions often require tailored power integrity solutions. Early identification of ride-through gaps improves survivability and prevents failures that may otherwise appear only during integration or deployment.
Final Insight
Voltage does not need to leave its specified range to bring down a system.
A short-duration voltage collapse – often unmeasured – can be enough to trigger resets, data corruption, or system failure.
True survivability requires ride-through design.
Power integrity is not simply compliance.
It is ensuring continuous operation in real-world conditions.
