Why Many Systems Detect Failures Too Late

In many industrial, medical, HVAC, pneumatic, and vacuum systems, pressure monitoring is used to protect equipment, prevent downtime, and ensure that critical processes continue to operate safely.

When engineers need to monitor a system, the natural response is often to specify a pressure sensor, connect it to a controller, and let software determine when an alarm should be triggered.

In some applications, that is absolutely the right approach. When continuous measurement, closed-loop control, data logging, telemetry, or analytics are required, a pressure sensor is often the best solution.

However, in many real-world systems, the most important engineering question is not:

“What is the pressure?”

Instead, it is:

“Is something starting to go wrong?”

This is where one of the most overlooked parameters in system design becomes extremely valuable:

Differential Pressure (ΔP).

---

Failure Begins Long Before a System Stops

Filters do not clog instantly.

Pumps do not lose efficiency overnight.

Fans do not wear out in a single day.

Vacuum leaks rarely appear as sudden catastrophic failures.

Most failures develop gradually.

Flow resistance increases.

Flow rate decreases.

Vacuum levels begin to drift.

Pumps work harder.

Energy consumption rises.

The system slowly moves away from its optimal operating condition.

The problem is that the system usually continues to function.

Operators still see a working machine.

The controller does not generate an alarm.

Motors continue to run.

Pumps continue to operate.

Yet from an engineering perspective, the failure process has already started.

At this stage, the earliest warning sign may not appear in temperature, vibration, power consumption, or motor current.

In many cases, the first indication is a small change in pressure – and more importantly, a change in differential pressure between two points in the system.

---

Why Engineers Often Measure What Is Easy to Measure

One of the most common biases in system design is the tendency to monitor parameters that are easy to measure rather than those that provide the earliest indication of a developing problem.

It is relatively straightforward to measure:

• Pressure
• Temperature
• Current
• Voltage
• Speed

All of these parameters are important.

However, they are not always the first parameters to change when a failure begins.

In many systems, the most valuable parameter is not the easiest one to connect a sensor to.

It is the parameter that changes first when the system starts moving away from normal operation.

Experienced engineers do not simply ask:

“What can we measure?”

They ask:

“Which parameter changes first when the failure begins?”

Surprisingly often, the answer is not temperature, current, or even absolute pressure.

It is differential pressure.

---

Why Absolute Pressure Does Not Always Tell the Whole Story

When engineers think about pressure, they typically think about a single measurement point:

• Tank pressure
• Pump discharge pressure
• Line pressure
• System pressure

But in many flow, filtration, ventilation, vacuum, and process systems, a single pressure measurement is not enough.

Consider a filter.

The important question is often not:

“What is the pressure before the filter?”

or

“What is the pressure after the filter?”

The important question is:

“What is the difference between them?”

A clean filter creates a certain flow resistance.

As dust, particles, debris, or contaminants accumulate, that resistance increases.

As a result, the pressure difference between the inlet and outlet begins to rise.

This is often the earliest indication that the filter is becoming clogged – long before system performance noticeably deteriorates.

The same principle applies to:

• Heat exchangers
• Air ducts
• HVAC systems
• Vacuum systems
• Medical equipment
• Laboratory equipment
• Industrial process systems

In many applications, ΔP is not just another parameter.

It is the parameter that tells the real story.

---

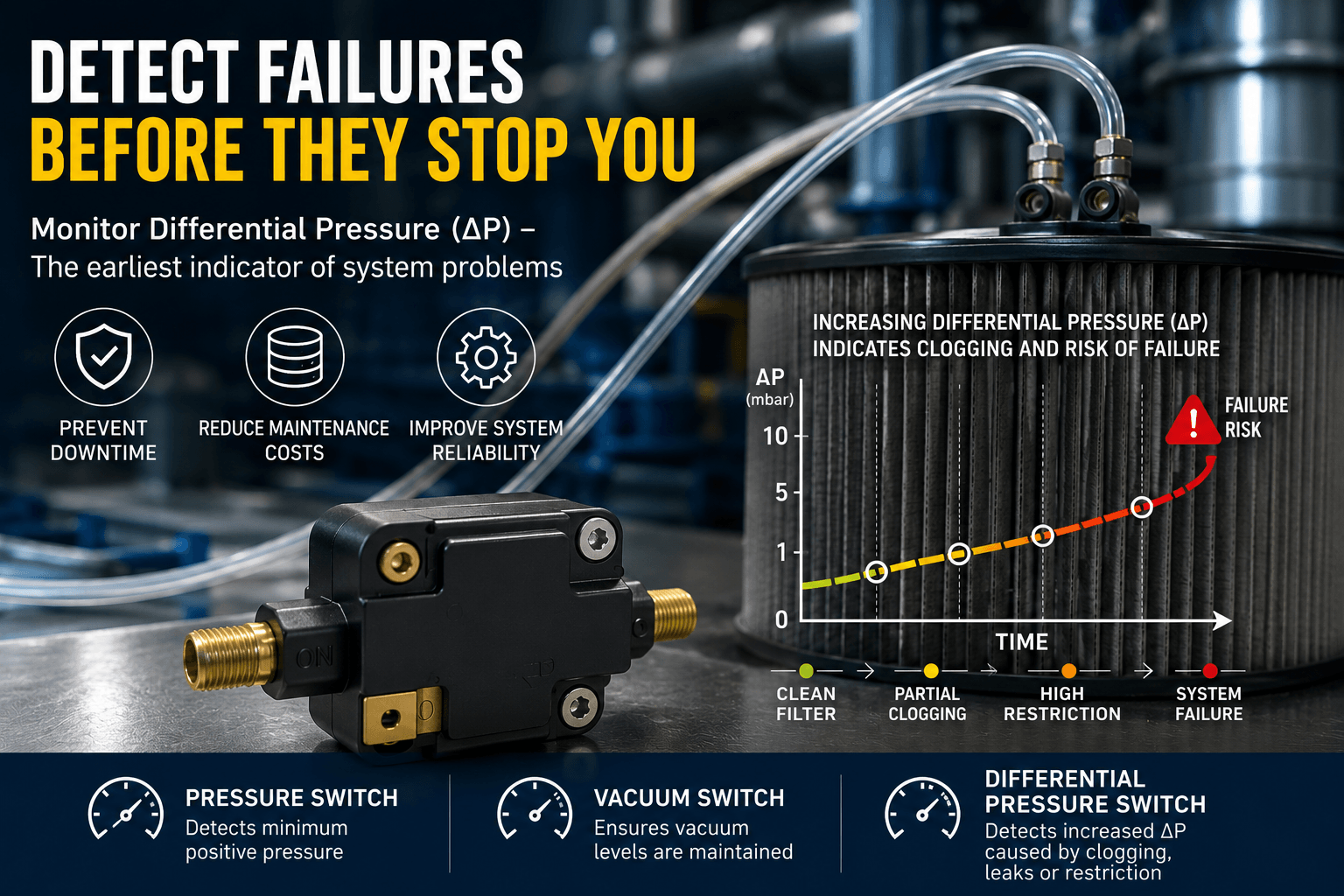

What Actually Happens When a Filter Starts to Clog?

A clogged filter is rarely an immediate event.

It is a gradual process that can often be detected long before it causes downtime.

The progression typically looks like this:

New Filter

↓

Low Differential Pressure (ΔP)

↓

Contaminants Begin to Accumulate

↓

Flow Resistance Increases

↓

ΔP Starts Rising

↓

Pump or Fan Works Harder

↓

Energy Consumption Increases

↓

Flow Rate Begins to Drop

↓

System Moves Away from Its Optimal Operating Point

↓

Performance Degrades

↓

Failure Develops

↓

Unexpected Downtime or Costly Maintenance

The critical point is that the first measurable sign is often the increase in differential pressure.

Everything else happens later.

This is why differential pressure monitoring can detect developing problems much earlier than temperature monitoring, power monitoring, or performance monitoring.

---

Why Differential Pressure Is One of the Most Powerful Predictive Maintenance Tools

Over the past decade, the industry has become increasingly focused on:

• Predictive Maintenance
• Industry 4.0
• IoT
• Cloud Analytics
• Artificial Intelligence

These technologies can provide tremendous value.

However, one of the simplest and most effective predictive maintenance tools has existed for decades.

Differential pressure.

Whenever a component begins to clog, wear, degrade, or lose efficiency, it usually changes the flow resistance within the system.

That change appears directly as a change in differential pressure.

As a result, ΔP monitoring can provide an early warning of developing failures:

• Without complex software
• Without cloud connectivity
• Without Big Data
• Without AI algorithms
• Without advanced analytics

Simply by understanding what the system is trying to tell you.

This is one of the reasons Differential Pressure Switches remain widely used even in highly advanced systems.

A classic example is HVAC equipment.

As an air filter becomes clogged, the system pressure may remain relatively unchanged, while the pressure drop across the filter steadily increases.

For this reason, Differential Pressure monitoring has become a standard method for detecting clogged filters, reduced airflow, and increasing energy consumption long before major performance issues occur.

---

The Common Mistake: Choosing a Sensor When the System Needs a Decision

When a pressure monitoring requirement appears in a specification, it is easy to assume that a pressure sensor is required.

But before selecting a sensor, engineers should ask a more fundamental question:

Does the system really need a measurement, or does it need a decision?

A pressure sensor answers:

“What is the pressure right now?”

A pressure switch answers:

“Has the pressure crossed a predefined threshold?”

These are fundamentally different requirements.

If the system requires:

• PID control
• Continuous monitoring
• Historical trending
• Telemetry
• Analytics

Then a pressure sensor is usually the correct choice.

However, if the system only needs to know:

• Is there sufficient pressure?
• Has vacuum been established?
• Is the filter becoming clogged?
• Can the process continue safely?

Then a pressure switch may provide a simpler, more reliable, and more cost-effective solution.

A pressure switch does not try to provide more information.

It provides the right information.

A decision.

---

Case Study – A Cardiology System That Eliminated the Pressure Sensor

During the development of an advanced cardiology system, engineers needed to monitor an internal vacuum subsystem that played a critical role in system operation.

The original design specified an analog vacuum sensor.

The logic seemed obvious.

This was a medical device.

A critical system.

Continuous pressure measurement appeared to be the safest choice.

However, during the FMEA process, a simple question was raised:

What does the software actually do with the pressure value?

The answer was surprising.

Nothing.

There was no PID control.

No continuous regulation.

No data logging.

No analytics.

The system only needed to verify one thing:

Is there sufficient vacuum for safe operation?

The system did not need to know whether the vacuum level was 1.2 or 1.6 inches of water column.

It only needed to know whether the minimum threshold had been achieved.

The project began with a pressure sensor.

It ended without one.

Not because the sensor was ineffective.

But because the system did not actually need the information it provided.

Instead, the design team selected an HPS-500-G Range B pressure switch configured for the required actuation point.

The result was:

• Less hardware
• Less software
• Fewer failure points
• Reduced validation effort
• Improved reliability

The system did not need a measurement.

It needed a decision.

---

Why a Change of Less Than 1 mbar Can Be Critical

Engineers often think in terms of high pressures:

• 10 bar
• 100 bar
• 350 bar

But many expensive failures do not begin there.

They begin with extremely small pressure changes.

A filter beginning to clog.

A small vacuum leak.

A fan losing efficiency.

A partially blocked line.

A vacuum pump beginning to degrade.

In many systems, the earliest indication may be a pressure change of less than 1 mbar.

A system that ignores this change will discover the problem late.

A system that monitors it correctly can transform an unexpected failure into scheduled maintenance.

---

Pressure Switch, Vacuum Switch, or Differential Pressure Switch?

The correct choice depends on the engineering question.

Pressure Switch

Use when the goal is to determine:

Is there sufficient positive pressure?

Typical applications include:

• Pumps
• Compressors
• Hydraulic systems
• Gas systems
• Industrial machinery

Vacuum Switch

Use when the goal is to determine:

Has adequate vacuum been established?

Typical applications include:

• Medical equipment
• Vacuum pumps
• Robotics
• Pick-and-place systems
• Packaging equipment
• Laboratory instruments

Differential Pressure Switch

Use when the goal is to determine:

Is something beginning to change within the system?

Typical applications include:

• Filter monitoring
• HVAC systems
• Heat exchangers
• Ventilation systems
• Process flow monitoring
• Predictive maintenance

---

Why Adding a Pressure Sensor Does Not Always Improve the System

There is a common assumption that adding more sensors automatically makes a system better.

Reality is more complicated.

Every additional sensor introduces:

• Cost
• Wiring
• Software
• Failure points
• Testing requirements
• Validation effort
• Maintenance

The real question is not:

“Which sensor should we add?”

The real question is:

“Do we need a sensor at all?”

In many cases, the system does not require an exact pressure value.

It requires a decision.

Is pressure present?

Has vacuum been established?

Is the filter becoming clogged?

Can the process continue safely?

When these are the requirements, a pressure switch may be the better engineering solution.

---

Quick Selection Guide

What Do You Need to Know?	Recommended Solution
Has the pump built pressure?	Pressure Switch
Has vacuum been established?	Vacuum Switch
Is the filter beginning to clog?	Differential Pressure Switch
What is the exact pressure value?	Pressure Sensor
Is airflow through the filter still acceptable?	Differential Pressure Switch
Can the process continue safely?	Pressure Switch
Is sufficient vacuum available?	Vacuum Switch
Is the HVAC system losing airflow?	Differential Pressure Switch

---

Conclusion

Systems rarely fail when the fault appears.

They fail when the early warning signs are missed.

In many cases, the first indication is not temperature, vibration, noise, or performance degradation.

It is a subtle change in differential pressure.

Before selecting a pressure sensor, pressure switch, or monitoring system, ask a simple question:

Which parameter changes first when failure begins?

Surprisingly often, the answer is:

ΔP – Differential Pressure.

And that is precisely why it remains one of the most powerful tools for fault detection, predictive maintenance, and reliability engineering in modern industrial, medical, HVAC, and vacuum systems.
