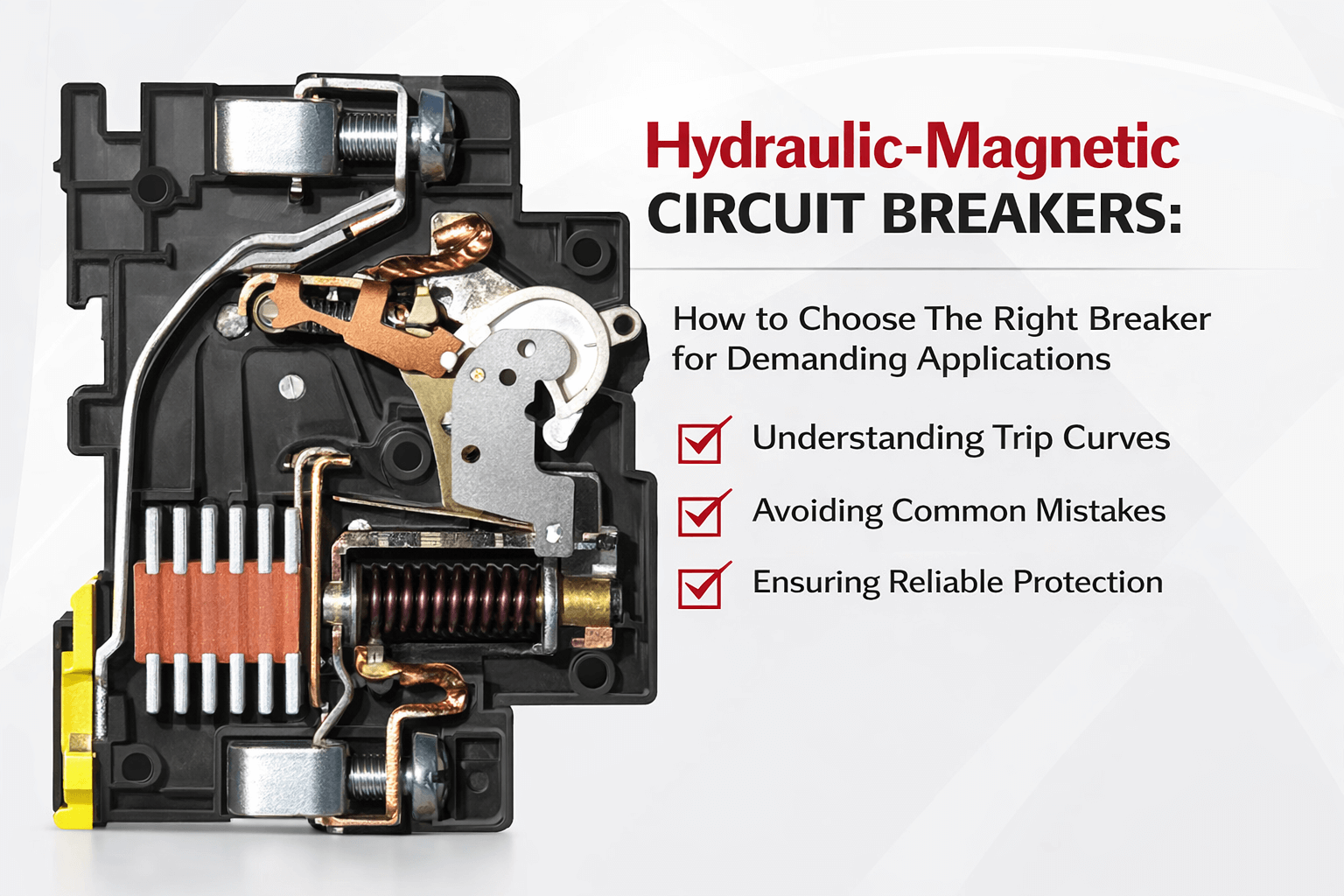

Understanding Trip Curves in Hydraulic-Magnetic Circuit Breakers

What Is a Trip Curve?

A trip curve is a time-current graph that defines how long a circuit breaker will take to trip under a given overload condition.

Horizontal axis: current as a multiple of rated current
Vertical axis: time to trip (milliseconds or seconds)

The curve does not represent a single line, but a tolerance band within which the breaker is guaranteed to operate.

The key point:

A breaker does not trip immediately at 101% of rated current.
Its behavior is intentionally controlled and time-dependent.

---

The Three Main Operating Regions

1. Continuous Operating Region – 100%

At rated current, the breaker is designed for continuous operation.

However, a common engineering design rule in critical systems is:

Continuous load ≤ 80% of breaker rating

This provides thermal and dynamic margin and enhances long-term reliability.

---

2. Moderate Overload Region – 125%–150%

In this range, the breaker provides delayed tripping.

This delay is intentional and prevents nuisance trips caused by temporary load increases.

This is particularly important for:

• Switched-mode power supplies

• Avionics systems

• Pulsed or cyclic loads

• Short-duration transient events

The hydraulic-magnetic mechanism ensures predictable delay behavior.

---

3. High Overload / Fault Region – 200%–400%

In this region, the breaker trips rapidly.

The objective is to:

• Protect wiring from damage

• Prevent thermal escalation

• Limit fault energy

• Protect sensitive downstream electronics

In aerospace and defense systems, this fast response is critical to prevent cascading failures.

---

Why Hydraulic-Magnetic Behavior Differs from Thermal Breakers

Thermal breakers rely on a bimetal element heated by current.

As a result, they are influenced by:

• Ambient temperature

• Accumulated heat

• Prior load conditions

• Environmental changes

This can cause drift in trip performance.

Hydraulic-magnetic breakers operate differently.

They rely on:

• A magnetic field proportional to current

• A viscous damping mechanism controlling delay

This provides:

• Temperature stability

• Consistent trip points

• Predictable delay

• Minimal performance drift over time

In aerospace systems, this stability is a major advantage.

---

Inrush Currents and Their Impact

One of the primary causes of nuisance tripping is inrush current.

Typical sources include:

• Electric motors

• DC-DC converters

• Large capacitor banks

• Radar systems

• Military communication platforms

Inrush currents may reach 3 to 8 times the rated current, but only for milliseconds.

A properly selected trip curve allows:

• Temporary inrush absorption

• No unnecessary shutdown

• Protection only if the overload persists

Selecting only by current rating is not sufficient.
Trip delay characteristics must match the load profile.

---

Types of Trip Delay Characteristics

Hydraulic-magnetic breakers are available with different delay profiles, such as:

• Instantaneous

• Short delay

• Medium delay

• Long delay

Choosing the wrong delay profile may result in:

• Repeated nuisance trips

• Overstressed wiring

• Reduced system confidence

• Increased maintenance events

Trip curve selection must be aligned with actual load behavior.

---

How to Read a Trip Curve Properly

When analyzing a trip curve:

1. Identify the maximum expected inrush current.

2. Determine the duration of that inrush.

3. Verify that the operating point lies within the allowable delay envelope.

4. Ensure that sustained faults fall into the fast-trip region.

Remember:

Trip curves are tolerance bands, not precise lines.

Proper interpretation requires understanding both system dynamics and breaker characteristics.

---

Common Engineering Mistakes

Frequent errors include:

• Selecting only by rated current

• Ignoring inrush current duration

• Using thermal breakers in vibration-heavy environments

• Failing to analyze worst-case fault scenarios

• Overlooking long-term lifecycle stability

Mission-critical systems do not tolerate these mistakes.

---

Environmental Influence on Trip Behavior

Ground vehicles and military platforms must account for:

• Continuous vibration

• Mechanical shock

• Rapid temperature changes

• High altitude operation

• Humidity and corrosive environments

Breakers lacking stable trip characteristics may exhibit unpredictable behavior under such conditions.

In long-life defense programs, consistency is more important than marginal cost savings.

---

Lifecycle Considerations in Long-Term Programs

Military platforms often remain operational for 20–30 years.

If trip characteristics are inconsistent:

• Replacement parts may behave differently

• Field maintenance becomes complex

• System certification may be affected

• Operator trust declines

When defined under a controlled military specification, trip curve behavior remains consistent across production batches and over time.

This consistency is critical in standardized defense programs.

---

Conclusion

A trip curve is not a minor technical detail — it is the core of electrical protection behavior.

Understanding time-current characteristics, aligning delay profiles with load dynamics, and leveraging the inherent stability of hydraulic-magnetic technology are essential for reliable protection in aerospace and defense systems.

Selecting a breaker is not simply about rated amperage.
It is about ensuring predictable, stable, and repeatable protection over the entire lifecycle of the platform.
