If Your Temperature Sensor Reads 80°C, the Critical Component Might Already Be at 130°C

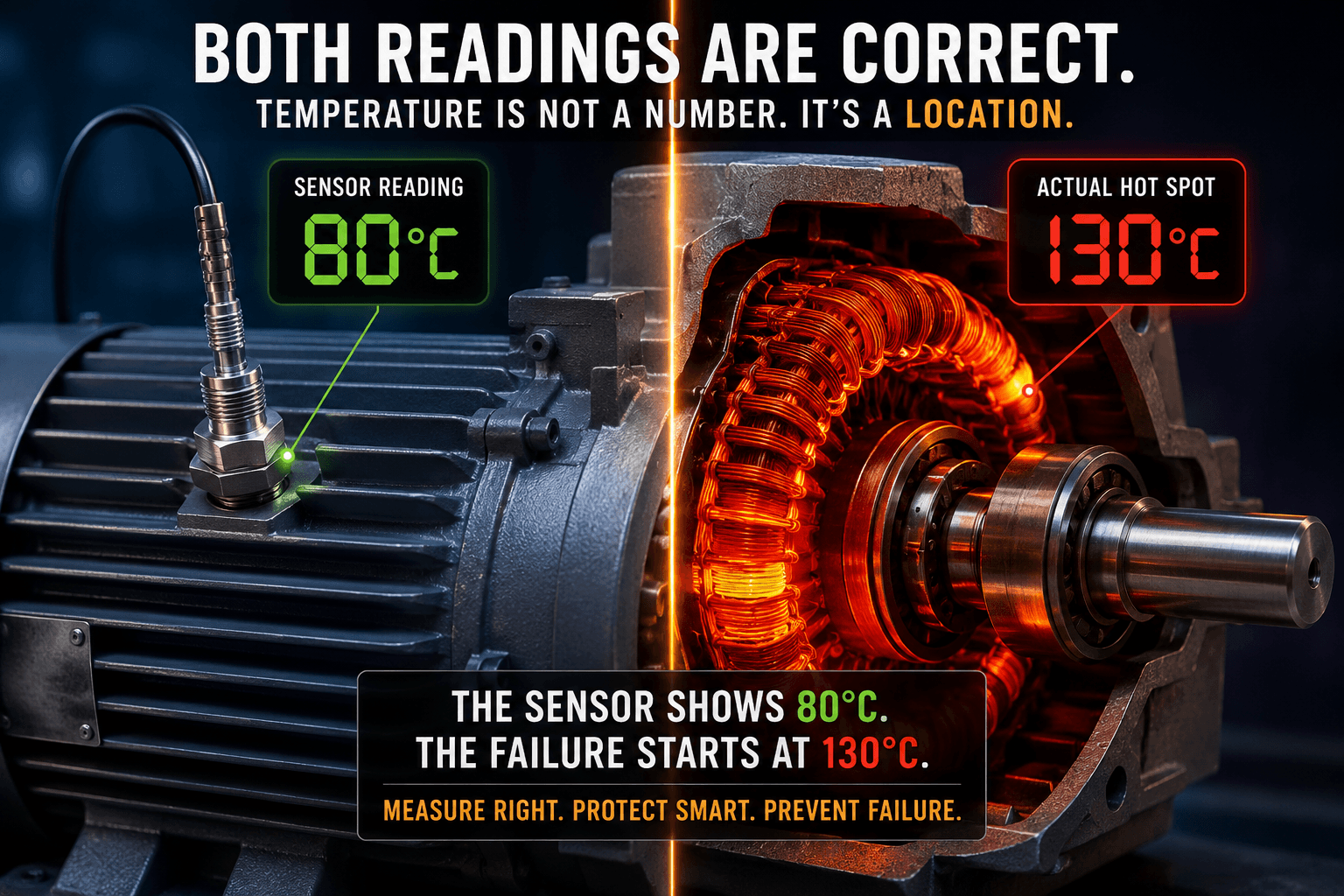

The temperature sensor showed 80°C.

The reading was completely accurate.

The motor still burned out.

How is that possible?

Because in temperature measurement, the most important question is not:

“How hot is it?”

The real question is:

“Where exactly are you measuring?”

In the real world, temperature is not just a number.

It is a location.

And the difference between the two can mean the difference between a system that operates reliably for ten years and one that fails unexpectedly in the field.

This is one of the reasons why selecting the right temperature sensor, thermal protector, or thermal switch is rarely a simple component-level decision.

Whether you’re designing a motor drive, power supply, RF system, battery pack, HVAC unit, or industrial controller, effective thermal protection depends on understanding how heat actually moves through the system.

The Most Common Mistake in Temperature Measurement

Imagine you are designing:

• An electric motor
• A power supply
• A DC/DC converter
• A battery system
• An RF amplifier
• A rugged computer

The system heats up.

You install a temperature sensor.

The sensor reports 80°C.

Everything appears normal.

But is the critical component actually at 80°C?

Not necessarily.

In many real-world applications, the temperature measured by the sensor can differ significantly from the actual temperature at the critical failure point.

The sensor may be perfectly accurate.

The system can still fail.

The Motor That Failed Despite “Normal” Temperature Readings

This scenario is far more common than many engineers realize.

The temperature sensor is mounted on the motor housing.

The housing reaches 80°C.

Everything appears to be within specification.

Meanwhile, the winding temperature inside the motor has already exceeded 130°C.

The difference is caused by thermal resistance, thermal mass, heat transfer paths, and mounting location.

By the time the controller receives the warning signal, thermal degradation may already have started.

From a measurement standpoint, everything looked correct.

From a physics standpoint, it was already too late.

There Is No Such Thing as “System Temperature”

This may sound strange, but in most systems there is no single temperature called:

“System Temperature.”

Instead, multiple temperatures exist simultaneously.

For example:

• Ambient air: 45°C
• Enclosure: 65°C
• Heat sink: 78°C
• Power transistor case: 115°C
• Semiconductor junction: 145°C

All of these temperatures are real.

All are correct.

All belong to the same system.

So when someone asks:

“What is the temperature of the system?”

The correct answer is:

“Which location are you talking about?”

Why Two Identical Sensors Can Produce Different Results

Consider a high-quality RTD sensor from VARIOHM.

Excellent accuracy.

Excellent stability.

Identical part number.

Identical specifications.

Now install that same sensor in two different ways.

In the first application, it is mounted directly to a metal surface.

In the second, it sits inside a sleeve with a small air gap.

Suddenly, response times and measured temperatures differ dramatically.

The sensor did not change.

The installation changed.

This is why selecting RTD sensors, thermistors, temperature probes, and other industrial temperature sensors should always be considered a system-level engineering decision rather than a component-level purchase.

Sometimes a Faster Sensor Creates More Problems

Engineers naturally assume:

Faster = Better.

Not always.

Many systems experience brief thermal events:

• Motor starts
• Peak loads
• Inrush currents
• Short-duration power surges

A very fast sensor may react to every transient event and trigger unnecessary protection actions.

The result can be:

• Nuisance shutdowns
• Reduced availability
• Unnecessary service calls

In some applications, thermal mass actually improves measurement quality by filtering insignificant events.

Sometimes a Slow Sensor Is a Disaster

On the other hand, some systems experience extremely rapid thermal escalation.

Examples include:

• High-power converters
• Battery charging systems
• Lithium battery packs
• RF power amplifiers
• High power-density motors

In these applications, every second matters.

If the sensor detects the problem 20 or 30 seconds too late, damage may already have occurred.

The protection system reacted.

The failure still happened.

The Real Question Is Not Which Sensor to Choose

The real question is:

What failure mode are you trying to prevent?

That question should always come before selecting a temperature sensor or thermal protection device.

Once the failure mechanism is understood, selecting the proper technology becomes significantly easier.

Whether that solution involves a VARIOHM RTD sensor, a thermistor assembly, or a LIMITOR thermal protector, success depends on understanding the application first.

Five Critical Considerations When Selecting Thermal Protection Devices

1. Define the Correct Cut-Off Temperature

The trip temperature should be based on the point at which damage begins to occur—not on normal operating temperature.

Consider:

• Material limitations
• Insulation ratings
• Long-term aging effects
• Internal temperature gradients

Trip too early and you create nuisance shutdowns.

Trip too late and the damage may already be done.

2. Choose the Correct Protection Technology

Different applications require different protection strategies.

Common solutions include:

LIMITOR Thermal Switches

Automatically reset after cooling and are ideal for many industrial and motor protection applications.

Thermal Fuses

Provide one-time permanent protection against catastrophic overheating.

Current & Temperature Limiters

Combine electrical and thermal protection within a single device.

The correct choice depends on safety requirements, serviceability, and acceptable restart behavior.

3. Match Response Time to System Behavior

Protection is only effective when it reacts at the right speed.

Engineers should evaluate:

• How quickly heat builds up
• How quickly damage occurs
• Whether transient events should be ignored or acted upon

4. Optimize Placement and Thermal Coupling

Even the best thermal protector can fail if installed in the wrong location.

For best results:

• Mount close to the critical heat source
• Ensure good thermal contact
• Minimize thermal barriers
• Consider airflow and local hot spots

Placement often has a greater impact than the specific component selected.

5. Define Reset Behavior

What should happen after an overtemperature event?

Options include:

• Automatic reset
• Manual reset
• Permanent shutdown

LIMITOR thermal protection devices are available in multiple configurations, allowing engineers to select the most appropriate response strategy for their application.

Conclusion

When engineers discuss temperature monitoring, thermal management, and overtemperature protection, the conversation usually starts with a simple question:

“What trip temperature should I use?”

In reality, that is rarely the most important question.

The most important questions are:

• Where is the actual heat source?
• How quickly can temperature rise?
• What failure mode are we preventing?
• How should the system respond when a limit is exceeded?

Because in the end, a temperature sensor can report 80°C.

The reading can be completely accurate.

And yet somewhere inside the system, the critical component may already be at 130°C.

That is why successful thermal protection starts not with selecting a component—but with understanding the physics of the application.

And that is exactly where technologies such as VARIOHM temperature sensors and LIMITOR thermal protection devices provide value: helping engineers measure the right temperature, at the right location, and respond before damage occurs.

FAQ – Temperature Sensors and Thermal Protection Devices

What is the difference between an RTD and a Thermistor?

RTD sensors offer excellent accuracy, stability, and long-term repeatability, making them ideal for industrial temperature monitoring and critical applications. Thermistors typically provide higher sensitivity and faster response times over narrower temperature ranges. VARIOHM offers both RTD and thermistor solutions for demanding industrial environments.

---

Why can a motor fail when the temperature sensor shows a safe temperature?

Because the sensor may not be measuring the hottest location within the system. Motor windings, semiconductor junctions, transformers, batteries, and power electronics can operate significantly hotter than the sensor mounting point.

---

Where should a temperature sensor be installed?

As close as possible to the critical heat source while maintaining good thermal coupling. Proper sensor placement is often more important than sensor accuracy. VARIOHM temperature probes, RTDs, and custom sensor assemblies are designed to help engineers measure where it matters most.

---

What is the difference between a Thermal Switch and a Thermal Fuse?

A thermal switch opens at a specified temperature and typically resets after cooling. A thermal fuse permanently opens after activation and must be replaced. The correct choice depends on safety requirements, serviceability, and acceptable restart behavior.

---

What are LIMITOR thermal protectors used for?

LIMITOR thermal protection devices are widely used for motor protection, transformers, power supplies, HVAC equipment, battery systems, industrial machinery, and power electronics. They provide reliable overtemperature protection using thermal switches, thermal cut-outs, and thermal fuses designed for harsh operating environments.

---

How do I choose the correct thermal protection device?

Start by identifying:

• The critical failure mode
• Maximum allowable temperature
• Required response time
• Mounting location
• Reset behavior

The optimal solution may involve a combination of VARIOHM temperature sensors and LIMITOR thermal protection devices working together as part of a complete thermal protection strategy.

---

Can thermal protection be treated as a standalone component selection?

No.

The most reliable systems treat thermal protection as a complete engineering system involving:

• Sensor technology
• Sensor placement
• Thermal coupling
• Trip temperature
• Response time
• Reset strategy
