Modern military vehicle platforms are designed to comply with MIL-STD-1275E/F. Power supplies are selected carefully. Transient immunity is verified. Input voltage ranges are validated.

Yet systems still reset.
Communication drops occur.
Sensors become unstable.

In many cases, the problem is not voltage magnitude.

It is ground movement.

---

Ground Is Not Zero Volts

In a laboratory, ground is stable.

In a military vehicle, ground is a conductor carrying hundreds of amps.

During engine cranking:

• 200A-600A starter current flows through chassis paths

• Ground potential shifts across different connection points

• Reference levels move relative to sensitive electronics

The system sees a voltage difference – even if the bus voltage appears stable.

---

What Happens During Starter Surge

During cranking:

1. High current flows through chassis return paths

2. Milliohm-level resistance creates voltage drop

3. Different subsystems reference different ground points

4. Internal rails experience differential shifts

Example:

If chassis resistance between two ground points is only 5mΩ and starter current is 400A:

V = I × R
V = 400 × 0.005 = 2V

A 2V ground shift is catastrophic for logic-level electronics.

The bus voltage may remain compliant with MIL-STD-1275F.
The system still fails.

---

Common Symptoms of Ground Shift

Ground shifts are often misdiagnosed as EMI or software issues.

Typical field symptoms:

• Reset during engine start

• ADC measurement drift

• CAN bus errors

• RS-422 communication glitches

• IMU bias jumps

• Intermittent sensor instability

The root cause is reference instability.

---

Why MIL-STD-1275E/F Compliance Is Not Enough

MIL-STD-1275 defines voltage transients, spikes, and ripple limits.

It does not guarantee:

• stable ground reference

• controlled return current paths

• isolation between subsystems

• protection against chassis potential differences

Compliance is necessary – not sufficient.

Power integrity must include reference control.

---

Engineering Solution Architecture Using Gilgal Portfolio

Solving ground shift requires layered mitigation.

---

1️⃣ Smart Input Power Protection

SPP-F330A Rev B1 – Smart Power Protector

This module provides:

• transient suppression

• load dump handling

• reverse polarity protection

• controlled input behavior under 1275E/F events

It stabilizes the front-end and reduces disturbance propagation.

---

2️⃣ Isolated Rugged DC-DC Conversion

GIL-78150-12 (24V to 12V, up to 180W)

or

GIL-78200 Series

Isolated converters break ground reference coupling between input and output.

Benefits:

• decouples chassis ground from sensitive electronics

• reduces differential ground shift impact

• improves reference stability

• fast dynamic response under cranking

Isolation is critical when ground movement is present.

---

3️⃣ Segmented Rail Architecture

Using multi-output or distributed architecture prevents:

• high-current subsystems from sharing sensitive returns

• propagation of disturbances to mission computer

• cross-coupling between rails

Gilgal rugged conversion platforms support structured power distribution for critical and non-critical loads.

---

4️⃣ System-Level Ground Strategy

True survivability includes:

• single-point reference for sensitive electronics

• controlled return paths

• separation of starter current return from logic return

• EMI filtering at correct topology locations

Power architecture – not only power conversion – resolves the issue.

---

Case Study

MIL-STD-1275F Tactical Platform – Reset During Engine Start

Background

A tactical vehicle compliant with MIL-STD-1275F experienced mission computer resets during engine cranking.

Converters were compliant.
Voltage range remained within 18-32V.

The problem persisted.

---

Field Measurement

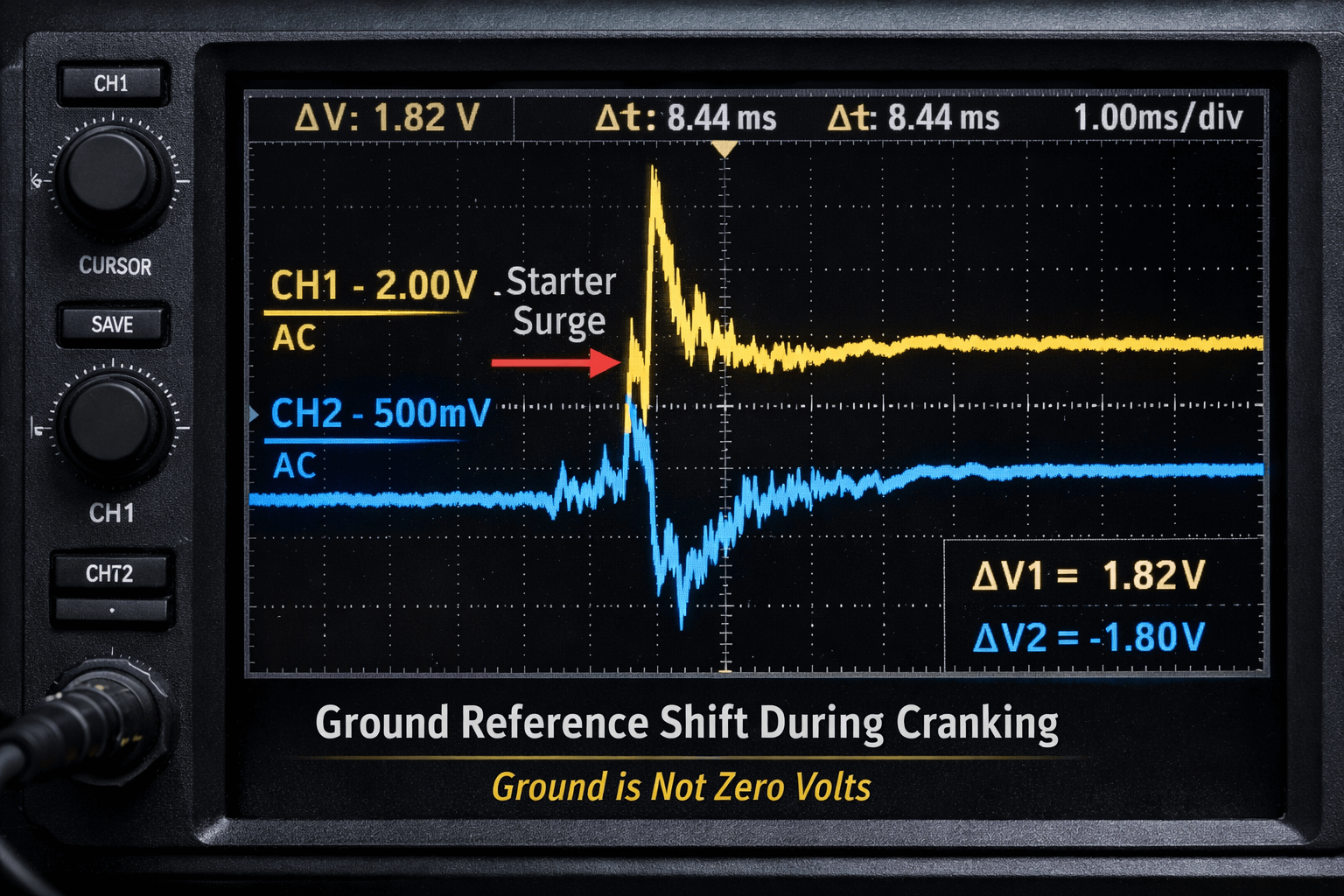

Oscilloscope measurements revealed:

• Bus dip to 17V

• Ground reference shift of ~1.8V between chassis points

• Collapse duration: 7ms

The DC-DC converter remained operational.

The mission computer rebooted.

---

Root Cause

Differential ground shift + insufficient ride-through margin.

Critical electronics referenced a ground point affected by starter return current.

---

Implemented Solution

The architecture was redesigned to include:

1. SPP-F330A Rev B1 at the input stage

2. GIL-78150-12 isolated DC-DC converter for mission computer

3. 3600µF hold-up buffering on high-voltage bus

4. Segregated return path for logic electronics

---

Ride-Through Calculation Example

Critical load: 120W
Cranking collapse: 8ms
Bus: 28V to 16V

C = 2 × P × t / (V1² − V2²)

C ≈ 0.0036F ≈ 3600µF

This buffer allowed the mission computer to survive the collapse without reset.

---

Results

• No resets during engine cranking

• Stable communication

• IMU bias stabilized

• Platform achieved operational reliability

---

Engineering Insight

MIL-STD-1275E/F compliance ensures survivability against defined voltage events.

It does not guarantee stable ground reference.

Ground shifts – combined with short voltage collapse – are often the hidden failure mechanism.

True power integrity requires:

• input protection

• isolation

• ride-through buffering

• architectural control
