Your Image Still Shakes Despite Choosing a Gyroscope with Excellent Bias Stability

MEMS Gyroscope, MEMS Inertial02/07/2026amironicLTD

🧩 Further Reading and Deeper Insight

This article is part of a broader series exploring the engineering principles behind modern inertial sensing and motion stability in advanced control and navigation systems. For deeper technical context and system-level insights, you may also find the following articles valuable:

  • Bridging Control and Navigation: How Advanced MEMS IMUs Are Redefining System Performance
  • Gyro and IMU for Advanced Control Systems
  • The Silent Problem of Precision Systems – Why Gyros and IMUs Are Control Components, Not Just Sensors
  • Why External Sync is Critical in Gyro and IMU Systems
  • Stabilization, Tracking & Time Sync: The Foundation of Precise Line-of-Sight Control
  • Mission-Grade Stabilization in Dynamic EO/IR Systems: Why Bandwidth, Data Rate, and Phase Lag Define Gimbal Performance
  • Why Gladiator? What Truly Differentiates a High-End MEMS IMU Manufacturer
  • Common Misconceptions About MEMS Inertial Sensors
  • Bias Stability vs. Bias Instability: What really determines the performance of Gyro and IMU systems in stabilization, tracking, and navigation
  • Scale Factor in MEMS IMUs – The Error That Quietly Destroys Accuracy
  • The IMU Was Excellent. The Image Still Shook.
  • 2000Hz IMU? Before You Get Impressed, Understand Three Completely Different Numbers
  • SX3: Pushing MEMS Beyond Traditional Stabilization
  • Why a Smaller IMU Can Save Months of Development

Together, these articles provide a deeper understanding of how modern MEMS inertial technologies support demanding stabilization, tracking, and navigation-assisted systems across industrial and defense applications.

Every stabilization system project eventually reaches the same point:

Choosing the gyroscope.

The first thing engineers do is open the datasheet.

Compare several models.

And almost immediately, their attention is drawn to one of the most recognized specifications in the MEMS industry:

Bias Stability.

The lower the number, the better the gyroscope.

At least, that’s the common assumption.

So, when a gyroscope offers outstanding Bias Stability, the expectation is clear: a stable image, a perfectly performing gimbal, and a high-performance control system.

Then comes the first field test.

The image still shakes.

The control loop refuses to settle.

The PID controller is tuned again and again.

The motors are replaced.

Filters are adjusted.

Controller gain is increased.

Yet nothing truly solves the problem.

How can a gyroscope with excellent Bias Stability still produce disappointing stabilization performance?

Because in many cases, you’re looking at the wrong specification.


While Everyone Looks at Drift, the Real Problem Lies Elsewhere

Bias Stability describes how much the gyroscope’s bias changes over time.

It is a critical specification for navigation systems that must estimate position over minutes or even hours without GPS.

But a stabilization system doesn’t wait hours.

It doesn’t even wait minutes.

Sometimes it doesn’t wait a single second.

It makes thousands of decisions every second.

And each time, it must determine whether the platform has actually started rotating – or whether nothing happened at all.

This is where another specification becomes critically important, even though it often receives far less attention:

Sensor Noise.


The Noise Your Controller Believes

When a gyroscope is perfectly still, most engineers expect its output to be a perfectly flat line.

In reality, it isn’t.

Even when no motion exists, the output continues to fluctuate slightly around zero.

These random fluctuations originate inside the sensor itself.

This is Sensor Noise.

The higher the noise level, the harder it becomes to distinguish real angular motion from the sensor’s own internal fluctuations.

To the control loop, both appear almost identical.

And the controller?

It has no idea that it’s looking at noise.

It simply sees the gyroscope reporting motion.

So it reacts.

The motors respond.

The system corrects.

And all too often, it is correcting motion that never actually existed.

In other words,

the controller starts chasing the gyroscope’s noise instead of the platform’s motion.


That’s Why the Image Shakes

Many engineers try to solve the problem by retuning the PID controller.

Others replace the motors.

Some add additional filtering.

Others go as far as redesigning the entire drive system.

But if excessive gyroscope noise is the real cause, all of these changes are treating the symptom – not the source.

Of course, noise can be filtered.

But every filter introduces latency.

And every additional microsecond of latency reduces the effective bandwidth of the control loop.

Eventually, every system reaches the same compromise:

Either fast response.

Or a cleaner signal.

Sometimes you simply can’t have both.

Unless the gyroscope itself produces a cleaner signal from the start.


Two Gyroscopes. The Same Bias Stability. Completely Different Results.

Imagine two gyroscopes with identical specifications:

Bias Stability = 0.5°/hr

On paper, they appear equivalent.

But there is one important difference.

The first has:

Noise Density = 0.003°/√Hz

The second has:

Noise Density = 0.03°/√Hz

At first glance, the difference seems insignificant.

In a navigation system, it may hardly be noticeable.

But in an EO/IR system, a stabilized gimbal, or a stabilized antenna operating with a high-bandwidth control loop, the difference can be dramatic.

The first gyroscope delivers a cleaner, more stable signal.

The second forces the controller to cope with ten times more measurement noise.

Suddenly, it becomes obvious why two systems that looked almost identical on paper behave completely differently in the field.


So Which Matters More – Noise or Bias Stability?

That is actually the wrong question.

The right question is:

Which error mechanism is limiting your application?

If you’re designing a navigation system that performs hours of GPS-denied dead reckoning, Bias Stability is one of the most important specifications.

But if you’re designing a stabilized gimbal, an EO/IR system, a stabilized antenna, or a high-performance tracking platform, Sensor Noise is often the parameter that ultimately defines stabilization performance.

Not because Bias Stability is unimportant.

But because stabilization systems operate in milliseconds- not hours.


Choosing a Gyroscope Is About More Than Bias Stability

A datasheet is not a ranking table.

No single specification tells the whole story.

When selecting a gyroscope for a stabilization system, it’s essential to understand how each parameter affects the control loop:

  • Sensor Noise – Determines how clean the measurement signal is.
  • Bias Stability – Determines long-term accuracy.
  • Bandwidth – Defines the range of motion the gyroscope can accurately measure.
  • Latency – Determines how quickly measurement data reaches the controller.
  • Output Rate – Determines how frequently new data is available.
  • Signal Processing – Affects measurement quality in real time.
  • External Synchronization – Enables precise timing with the rest of the system.

Stabilization performance is never determined by a single specification.

It is determined by the right balance between all of them.


The Bottom Line

When a stabilization system fails to deliver the expected performance, it’s easy to blame the algorithm, the PID controller, the motors, or the mechanical design.

But in many cases, the real limitation is much more fundamental.

It begins with the quality of the signal coming from the gyroscope.

Because in high-performance stabilization systems, a gyroscope should never be judged by Bias Stability alone.

More often than not, Sensor Noise is the difference between an image that constantly shakes and one that appears perfectly motionless.

Case Study: Why an EO/IR System Still Shook Even Though the Motors, Control System, and Algorithms Were Performing Perfectly

A high-performance stabilization system should be straightforward.

The gyroscope measures angular rate.

The PID controller calculates the correction.

The motors stabilize the line of sight.

If every component performs as expected, the image should remain perfectly stable.

At least in theory.

In practice, reality is far more complex.


The Application

A manufacturer of long-range EO/IR systems was developing a dual-axis gimbal for an airborne platform.

The system requirements included:

  • 10 kHz output rate
  • Approximately 500 Hz control bandwidth
  • Precise stabilization at high optical magnification
  • Fast response to platform vibration and dynamic disturbances

Everything performed exactly as expected during laboratory testing.

But once flight testing began, an unexpected problem appeared.


The Problem

At low optical magnification, image stability was excellent.

However, as magnification increased, subtle micro-jitter became visible.

There were no large oscillations.

No loss of target lock.

Just tiny, persistent image movements that significantly reduced overall image quality.

The engineering team initially suspected a mechanical issue.


What Was Investigated?

Over several weeks, nearly every subsystem was evaluated:

✔ Motors

✔ Encoders

✔ Structural stiffness

✔ Bearings

✔ Mechanical resonances

✔ Control algorithms

✔ PID tuning

Nothing appeared abnormal.

In fact, every measurement suggested that the stabilization system should have been performing correctly.


The First Clue

The breakthrough came when the engineering team recorded the raw gyroscope output.

Suddenly, the problem became obvious.

The control loop was responding not only to actual platform motion.

It was also responding to the gyroscope’s own measurement noise.

In other words,

the motors were making thousands of corrections every second, many of which were reacting to motion that never actually existed.


Why Does This Happen?

A control system cannot distinguish between:

  • Real platform motion
  • Internal sensor noise

To the PID controller, both appear to be legitimate angular-rate measurements.

If the gyroscope reports motion, the controller reacts.

Even if that “motion” is nothing more than random sensor noise.

The higher the noise level,

the greater the number of unnecessary corrections generated by the control loop.


The Solution

The engineering team replaced the existing sensor with the Gladiator G400D-300-100C.

The decision wasn’t based solely on Bias Stability.

It was based on the combination of several critical performance characteristics:

  • ARW: 0.0254°/√Hr
  • Bias In-Run: 0.8°/hr
  • Bandwidth: 600 Hz
  • Output Rate: 10 kHz
  • Digital Message Delay: 20 µs
  • VELOX™ Processing
  • Full temperature calibration

Why Did This Combination Matter?

A 600 Hz bandwidth allows the gyroscope to capture fast dynamic motion without limiting the control loop.

A 10 kHz output rate provides the controller with extremely frequent measurement updates.

A 20 µs message delay minimizes latency throughout the stabilization loop.

At the same time, the sensor’s low noise level significantly reduces the number of unnecessary corrections generated by the PID controller.

The result is not simply a more accurate gyroscope.

It is a cleaner, more stable control loop.

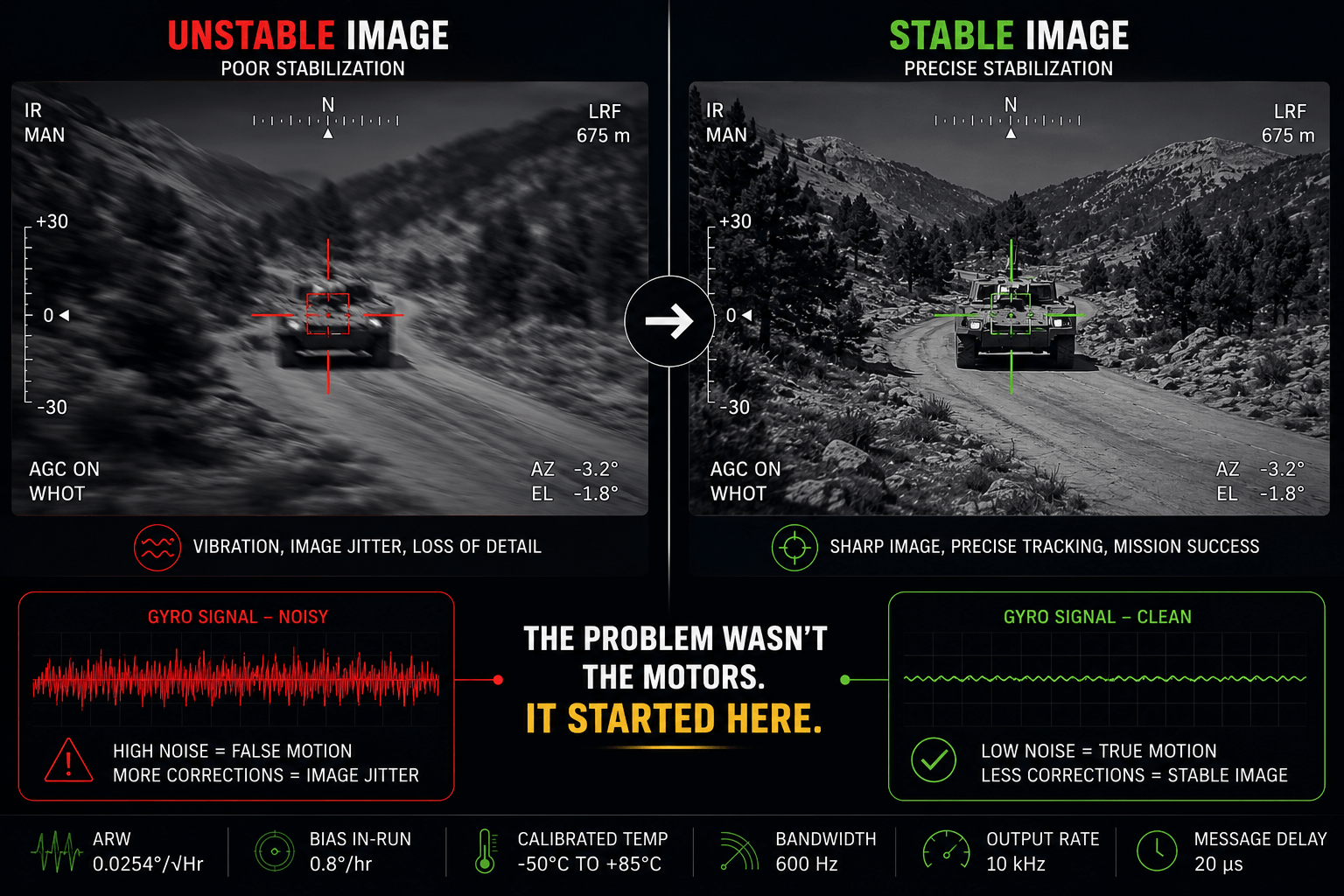

The Result

After replacing the gyroscope:

  • Higher controller gain could be applied without introducing oscillations.
  • Image micro-jitter at high optical magnification was significantly reduced.
  • Small-target tracking performance improved.
  • The stabilization system made better use of the existing motors and mechanical design-without changing either one.

In other words,

the motors remained the same.

The mechanical structure remained the same.

The controller remained the same.

The only thing that changed was the quality of the information driving the control loop.


Conclusion

Many engineers choose a gyroscope based primarily on Bias Stability.

For high-performance stabilization systems, however, that tells only part of the story.

Overall system performance is also determined by Sensor Noise, Bandwidth, Output Rate, and Latency.

The Gladiator G400D was specifically designed for demanding stabilization applications where the quality of the gyroscope signal ultimately determines whether an image remains rock solid-or continues to shake.

Frequently Asked Questions (FAQ)

Is Bias Stability the most important specification when selecting a gyroscope?

Not always. Bias Stability is especially important in navigation and dead-reckoning applications, where errors accumulate over time. In high-speed stabilization systems such as gimbals, EO/IR payloads, and stabilized antennas, parameters such as Sensor Noise, Bandwidth, and Latency can have a more direct impact on stabilization performance.


Why can Sensor Noise cause image jitter?

The control loop treats the gyroscope output as the true representation of platform motion. If the signal contains excessive noise, the controller interprets part of that noise as real angular movement and attempts to correct it. The result is unnecessary motor activity, which can lead to micro-jitter and reduced image stability.


Can filtering solve the problem?

Filtering can reduce sensor noise, but it almost always introduces additional latency. In high-performance stabilization systems, even small delays can reduce control-loop bandwidth and responsiveness. For this reason, it is generally preferable to start with a gyroscope that produces the cleanest possible signal.


If two gyroscopes have the same Bias Stability, will they deliver the same performance?

Not necessarily. Two gyroscopes may have nearly identical Bias Stability specifications while differing significantly in Sensor Noise, Bandwidth, Output Rate, and Latency. These differences can dramatically affect real-world stabilization performance.


Is higher Bandwidth always better?

Not always. The gyroscope’s bandwidth should match the dynamics of the application and the control-loop design. However, in high-speed stabilization systems, higher bandwidth enables the sensor to capture faster angular motion, improving disturbance rejection and stabilization performance.


Does a higher Output Rate guarantee better performance?

No. A higher output rate provides the controller with more frequent measurement updates, but it must be matched by adequate bandwidth, low latency, and low sensor noise. Only the right combination of these parameters delivers meaningful improvements in system performance.


When is Bias Stability the most important specification?

Bias Stability becomes critical in inertial navigation systems, GPS-denied dead reckoning, astronomical stabilization, and other applications where measurement errors accumulate over long periods. In these applications, long-term bias stability is a primary factor in overall system accuracy.

Tags: Gladiator_Technologies

Related Articles

Bias Stability vs. Bias Instability: What really determines the performance of Gyro and IMU systems in stabilization, tracking, and navigation

09/04/2026amironicLTD

Analog Gyros in a Digital Age – How the G150Z Brings Legacy Systems Back to Life

21/11/2025amironicLTD

VELOX™ HIGH SPEED PROCESSING IS HERE

27/04/2019amironicLTD

Recent Posts

  • Your Image Still Shakes Despite Choosing a Gyroscope with Excellent Bias Stability
  • Circuit Breaker or Control Device? Why Military Circuit Breakers Do More Than Protect
  • Measuring Pressure Without Temperature Is Only Half the Picture
  • Why a Smaller IMU Can Save Months of Development
  • Hour Meter: Why Machines with Advanced PLCs Still Need One

Categories

  • Air Switch
  • Circuit Breakers
  • Elapsed Time Indicator
  • Feedthrough
  • Footswitches
  • Gears & Transmission
  • Hour Meters
  • Infra Red Switches
  • INFRARED LAMPS
  • Low Noise Inertial MEMS
  • Mechanics
  • MEMS Gyroscope
  • MEMS Inertial
  • Microelectronics
  • Motors
  • Position Sensors
  • Power Supply
  • Pressure Sensors
  • Pressure Switch
  • Temperature Sensors
  • Tungsten and Molybdenum
  • Uncategorized
  • Vacuum Switches

Quick Contact

Fill out the form and our representatives will return to you

    Name (required)

    Email (required)

    Phone

    Message

    This site is protected by reCAPTCHA and the Google
    Privacy Policy and
    Terms of Service apply.

    Amironic Ltd.

    3 Rabinovich Street, Petah Tikva 4928144 , Israel. Tel: +972-3-9047744 E-mail: office@amironic.co.il
    Email
    Facebook
    Twitter
    LinkedIn
    YouTube
    Press on the ISO Certificate below for download
    ISO 9001:2015 Certification
    • MEMS Inertial
    • Circuit Breakers
    • Footswitches
    • Mechanical & Transmisions
    • Sensors
    • Motors
    • Electronics
    • Hand Control
    • Power Solutions

    News

    • Your Image Still Shakes Despite Choosing a Gyroscope with Excellent Bias Stability
    • Circuit Breaker or Control Device? Why Military Circuit Breakers Do More Than Protect
    • Measuring Pressure Without Temperature Is Only Half the Picture
    • Why a Smaller IMU Can Save Months of Development
    • Hour Meter: Why Machines with Advanced PLCs Still Need One
    About AmironicContactעברית
    © 2022 Amironic All rights reserved. All Trademarks are the property of their respective owners.
    • Increase Font
    • Decrease Font
    • Black & White
    • Inverse Colors
    • Highlight Links
    • Regular Font
    • Reset
